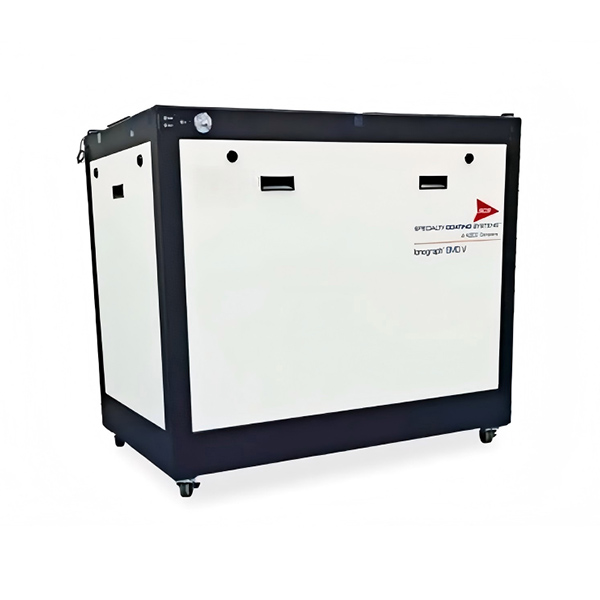

PCB Ion Contamination Tester (Oionograph)

Controls water/semi-aqueous, clean/no-clean processes for bare and assembled PCBs, and prevents corrosion issues related to ionic contamination
Immersion, spray, and agitation nozzles with optional heated extraction solution provide extremely high sensitivity for accurate detection
Operates with SCS PowerView software, with an optional integrated PC for convenient control and data management

Application: Verifies PCB surface cleanliness post-cleaning to prevent flux residue corrosion issues. (New Machine)

Παράμετρος	Specification
Core Function	Measures surface ionic concentration on PCBs, electronic components, assembled boards & electrical equipment
Compliance Standards	MIL-STD-2000A, IPC-TM-650, ANSI/J-STD-001
Key Applications	Bare/Assembled PCB cleaning process control; clean/no-clean process validation; small component cleanliness test; low-residue process monitoring
Detection Performance	High sensitivity via immersion/spray/agitation nozzles, with optional heated extraction solution
Test Chamber Sizes	4 options for small to large components: 6×6", 12×14", 14×20", 18×20"
Operation System	Runs on SCS PowerView software, with optional integrated PC for streamlined operation
Applicable Scenario	Designed for high-volume production environment ionic contamination detection
