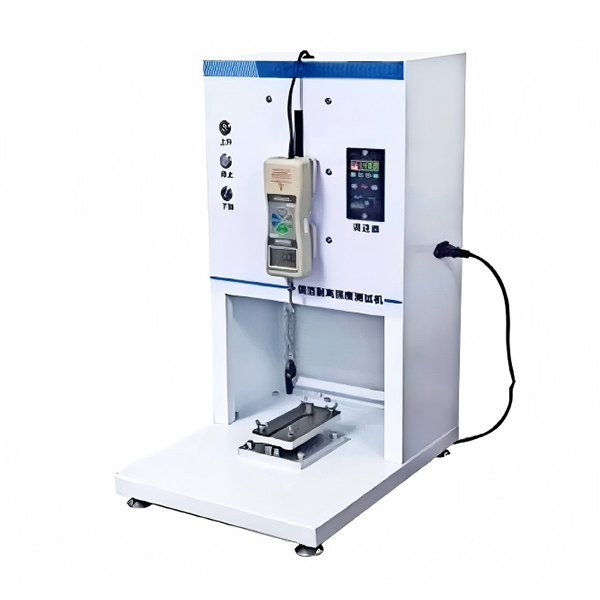

IPC Standard 90° PCB Copper Foil Peel Strength Tester

Copper Foil Peel Strength Tester

Adopts high-quality motor and lead screw drive, featuring low vibration and low noise. Load range: 0-100N (customizable upon request)
Fully meets IPC-TM-650 standards for reliable PCB/CCL copper foil adhesion testing
Includes dedicated fixtures and rigid specimen trolley for immediate out-of-the-box testing
Switchable force units, stepless speed control, and USB data logging for versatile lab use

Application: Professional for testing copper foil peel strength of rigid & flexible CCL and PCB pad pull-out force. Supplied with standard sample fixture and rigid specimen trolley. (New Machine)

Parameter	Specification
Model	Peel-01
Test Type	90° Copper Foil Peel Strength & PCB Pad Pull-out Test
Applicable Samples	Rigid & Flexible Copper Clad Laminates (CCL), PCB
Load Range	0–100N (customizable)
Force Accuracy	0.01N
Test Speed Control	With stepless speed regulator
Max Stroke	100mm
Power	500 W
Display & Output	4.5-digit LCD display; USB connection for PC data analysis, real-time curve plotting, with print port
Units	Switchable between N, kgf, lbf
Standards Compliance	IPC-TM-650 2.4.8 / 2.4.9, IEC-326-2, GB/T 4677-2002, GB/T 13557-92
Transmission System	High-quality motor & lead screw drive, low vibration & low noise
Included Fixtures	1× standard sample fixture, 1× trolley for rigid specimen fixtures
